Here we have a fine little catboat from the drawing table of William Garden. When a highly regarded designer draws a boat for his own use, the results seem worth a close look.

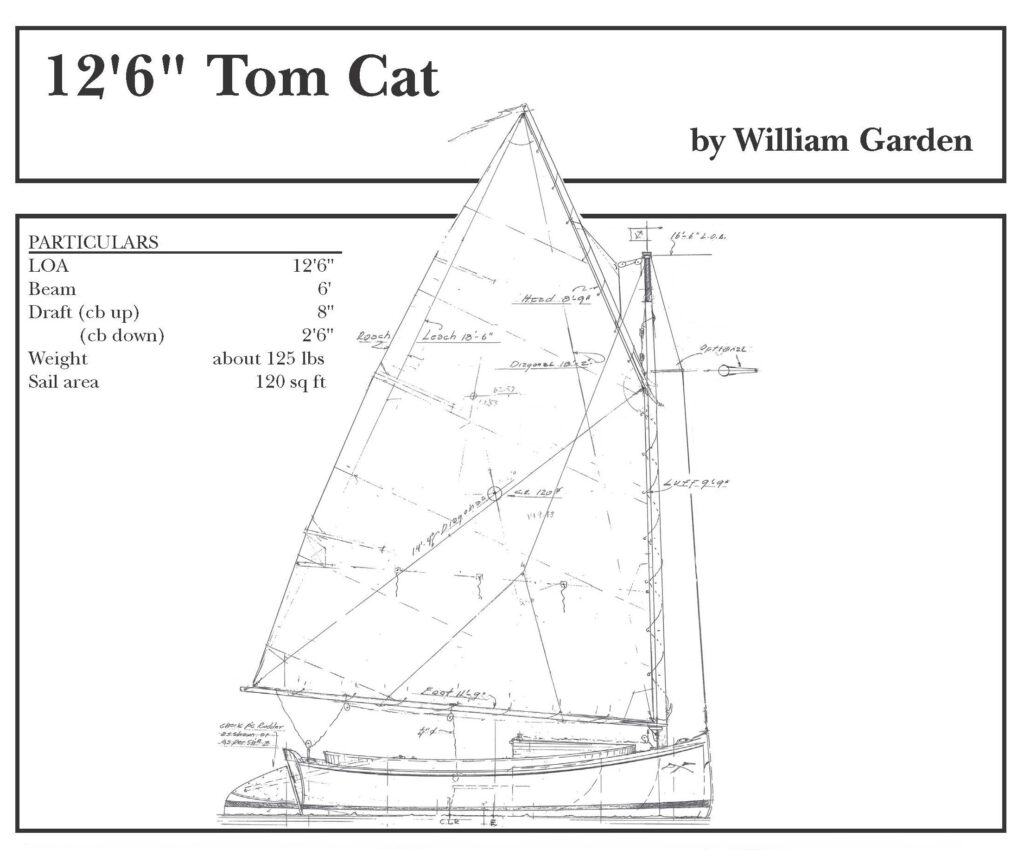

12′6″ Tom Cat
DESCRIPTION
Hull type: Round-bottomed, transom sterned
Rig: Gaff cat
Construction: Plank on frame
PERFORMANCE
Suitable for protected waters
Intended capacity: 1-2
Trailerable
Propulsion: Sail, oars
BUILDING DATA
Skill needed: Intermediate to advanced
Lofting required: Yes
PLANS DATA
No. of sheets: 9
Supplemental information: No
Level of Detail: Above average
Plans Format: Print
Cost per set: $75
Plan No. 143
Related Publications:
The Making of Tom Cat, by William Gardner
WoodenBoat No.176
Particulars
LOA: 12′6″
Beam: 6′
Draft: (cb up) 8″
(cb down) 2′6″
Weight: about 125 lbs
Sail area: 120 sq ft
