This striking lapstrake hull is good for rowing or sailing and for work or play. Tammie Norrie comes from Iain Oughtred’s drawing table on the Isle of Skye, Scotland.

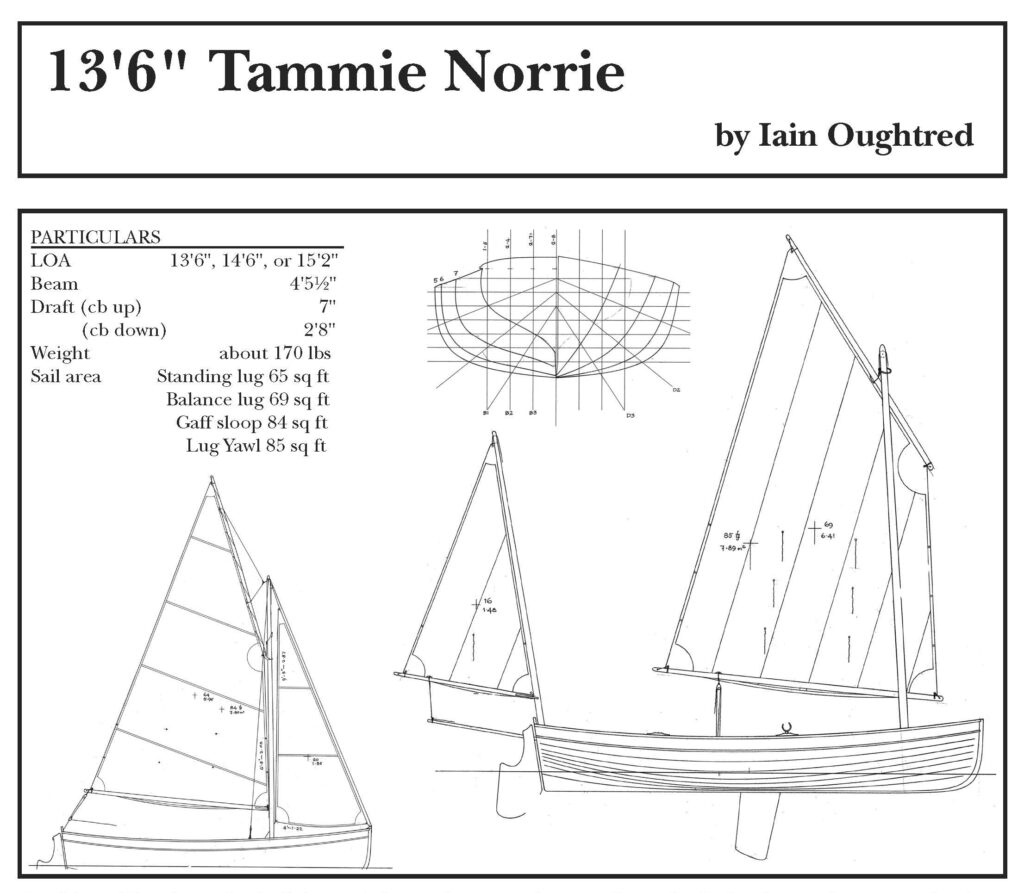

13′6″ Tammie Norrie
DESCRIPTION
Hull type: Round-bottomed, transom sterned
Rig: Balance lug yawl, standing lug, gaff sloop, yawl
Construction: Glued-lapstrake plywood
PERFORMANCE
Suitable for protected waters
Intended capacity: 1-3
Trailerable
Propulsion: Sail, oars
BUILDING DATA
Skill needed: Basic to intermediate
Lofting required: No
PLANS DATA
No. of sheets: 7
Supplemental information: 17 pages
Level of Detail: Above average
Plans Format: Print
Cost per set: $198
Plan No. 150
Related Publications:
Clinker Plywood Boatbuilding Manual, by Iain Oughtred
How to Build Glued-Lapstrake Wooden Boats, by John Brooks & Ruth Ann Hill
Boat Design Quarterly, Vol. 46
Particulars
LOA: 13′6″, 14′6″, or 15′2″
Beam: 4′5½″
Draft: (cb up) 7″
(cb down) 2′8″
Weight: about 170 lbs
Sail area: Standing lug 65 sq ft
Balance lug 69 sq ft
Gaff sloop 84 sq ft
Lug Yawl 85 sq ft
