Designer Karl Stambaugh has gone out of his way to ensure that this plywood pocket cruiser doesn’t look like a plywood boat. He drew the stem to stand proud, as it would on a conventionally planked hull. Solid, covered sheerstrakes add to the illusion, as does the severe rounding-over specified for the chines. And the curved, raked transom isn’t exactly standard fare for sheet-plywood boats. In all, this is a handsome little cruiser.

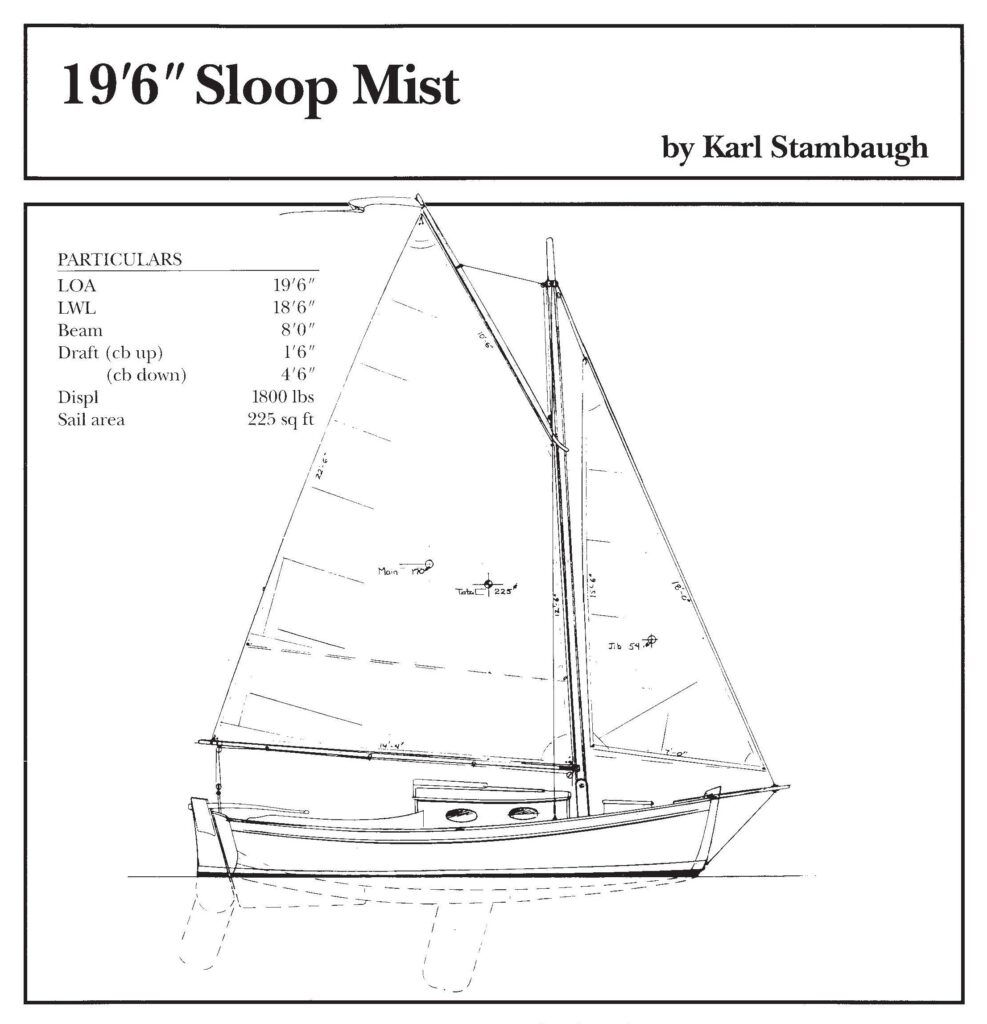

19′6″ Sloop Mist
DESCRIPTION
Hull type: V-bottomed, centerboard boat
Rig: Gaff- or gunter-rigged sloop
Construction: Plywood planking over sawn frames
Alternative construction: none
Headroom/cabin (between beams): About 4′2″
PERFORMANCE
Suitable for: Somewhat protected waters
Intended capacity: 1-4 daysailing, 2 cruising
Trailerable: Yes
Propulsion: Sail w/ outboard auxilliary
BUILDING DATA
Skill needed: Intermediate to advanced
Lofting required: Yes
PLANS DATA
No. of sheets: 6
Level of Detail: Average
Plans Format: Print or Digital
Cost per set: $90
Plan No. 107
Related Publications:
Boat Design Quarterly, Vol. 36
Particulars
LOA: 19′6″
LWL: 18′6″
Beam: 8′
Draft: (cb up) 1′6″
(cb down) 4′6″
Displacement: 1800 lbs
Sail area: 225 sq ft
