When it comes to building a small wooden boat it’s hard to beat a skin-on-frame (SOF) for economy of time and materials, and ease of use when the boat is finished. Dave Gentry’s 10’ SOF-built Annabelle skiff is for sailing and rowing. Weighing just 63 lbs, it’s well suited for cartopping, and about as easy to carry and launch as a kayak. Your boating won’t be limited by access to ramps and trailer parking.

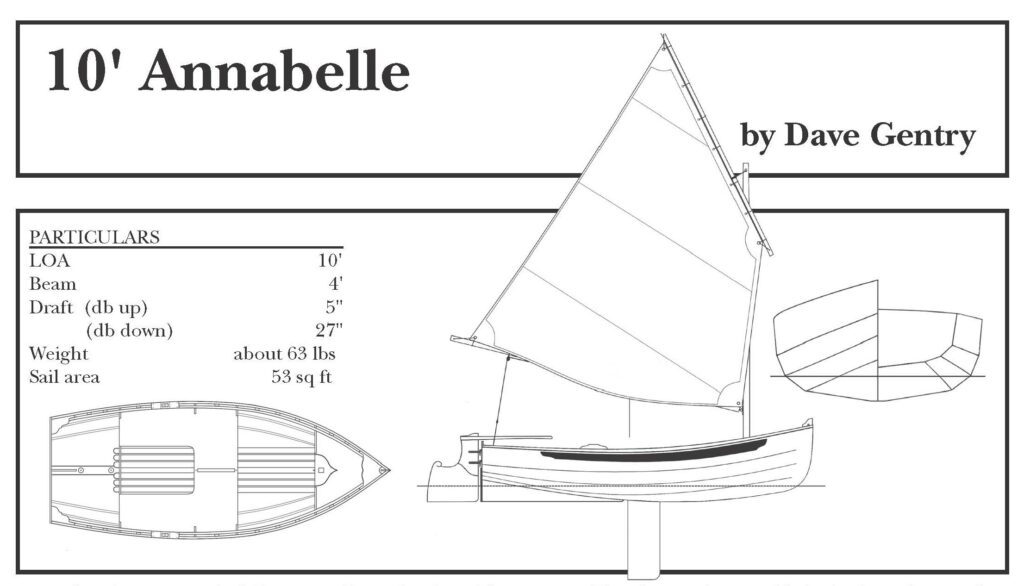

10′ Annabelle
DESCRIPTION
Hull type: Round-bottomed, transom sterned
Construction: Skin-on-frame
PERFORMANCE
Suitable for protected waters
Intended capacity: 1-2
Trailerable
Propulsion: Sail, oars
BUILDING DATA
Skill needed: Basic
Lofting required: No
PLANS DATA
No. of sheets: 2
Supplemental information: 34 pages
Level of Detail: Above average
Plans Format: Print or Digital
Cost per set: $55
Plan No. 161
Particulars
LOA: 10′
Beam: 4′
Draft: (db up) 5″
(db down) 27″
Weight: about 63 lbs
Sail area: 53 sq ft
