The V-bottomed yawl Sea Bird has occupied a legendary place in the annals of yachting since the first news of her launching in 1901. Conceived by Tom Day, founding editor of The Rudder, and drawn up by Charles Mower, with construction details by Larry Huntington, she was a successful blend of considerable experience. Her simple form and straightforward construction made her an appealing boat to those of modest means, especially in light of her reputation for being handy and able.

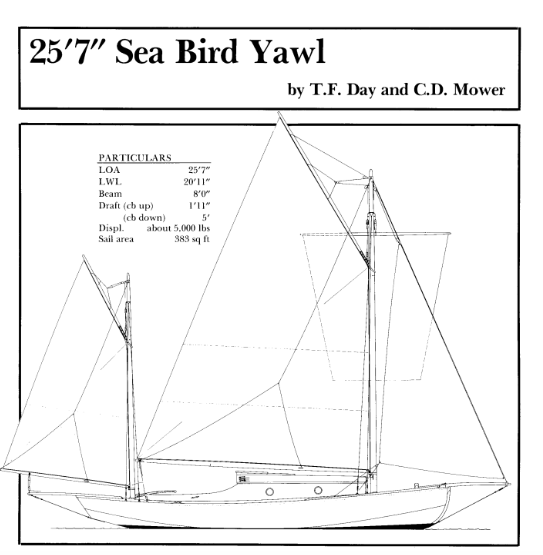

25′7″ Sea Bird Yawl
DESCRIPTION
Hull type: V-bottomed
Rig: Gaff yawl
Construction: Carvel planked over sawn frames
Alternative construction: Strip
PERFORMANCE
Suitable for: Somewhat protected waters
Intended capacity: 2-4 daysailing, 2 cruising
Trailerable: Yes, permit required
Propulsion: Sail
Speed (knots): 3-6
BUILDING DATA
Skill needed: Intermediate to advanced
Lofting required: Yes
PLANS DATA
No. of sheets: 7
Level of detail: Above average
Cost per set: $75.00
WB Plan No. 3
Related Publications:
WoodenBoat Nos. 43 & 44
Particulars
LOA: 25′7″
LWL: 20′11″
Beam: 8′0″
Headroom/cabin (between beams): about 4′2″
Draft: (cb up) 1′11″, (cb down) 5′
Displacement: 5,000 lbs.
Sail Area: 383 sq. ft.
