While many young sailors get their start in small one-design racing classes, some kids are born cruisers, with more of Tom Sawyer than Dennis Connor in their blood. These youngsters may not have the bankroll or the instincts to succeed on the race course, but might be dreaming a bit of longer-range adventure, perhaps spending the night with a buddy in that little cove a mile or two away. Often these dreamers would have the gumption to forsake the TV and build for themselves the vessel of their dreams, if they had a bit of encouragement.

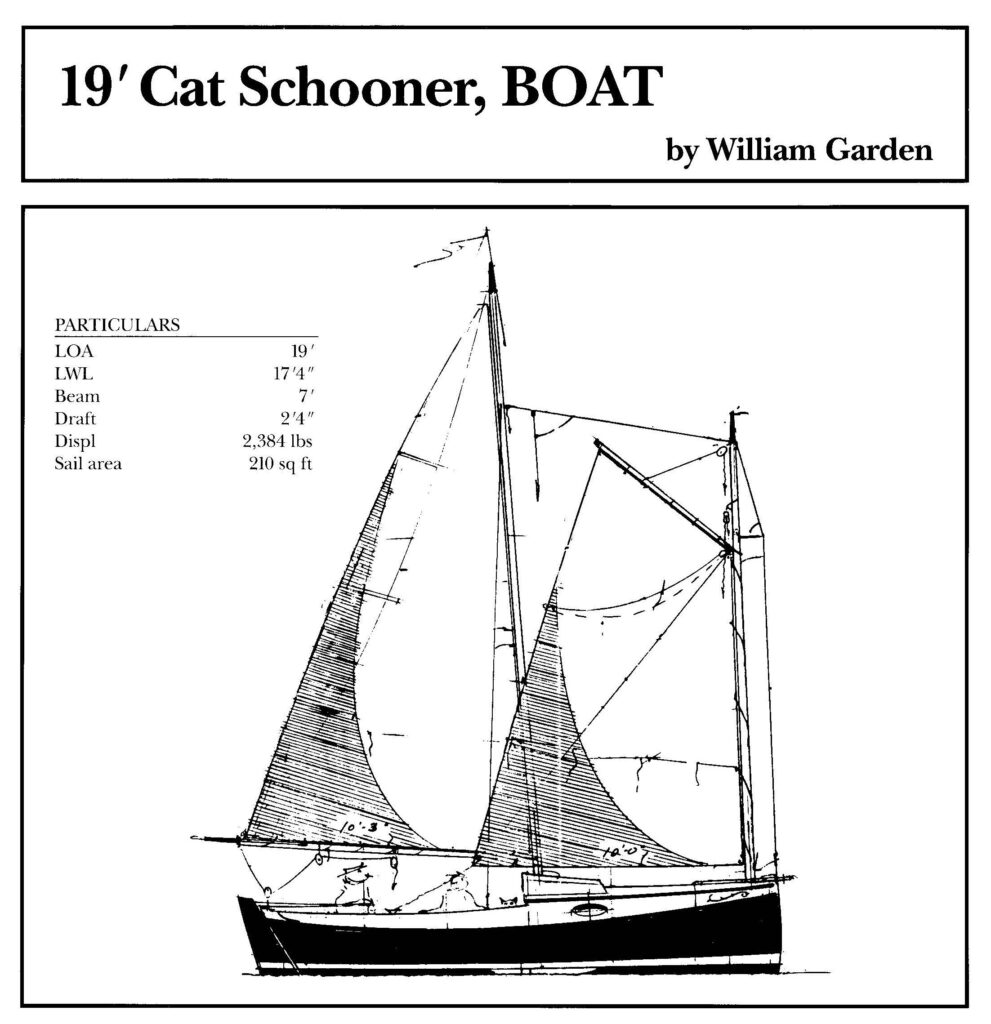

19′ Cat Schooner
DESCRIPTION
Hull type: Flat-bottomed, keel/centerboard
Rig: Gaff schooner
Construction: Plywood planking over sawn frames
Alternative construction: none
Headroom/cabin (between beams): About 3′5″
PERFORMANCE
Suitable for: Somewhat protected waters
Intended capacity: 1-4 daysailing, 2 cruising
Trailerable: Yes
Propulsion: Sail w/ inboard auxilliary
BUILDING DATA
Skill needed: Intermediate
Lofting required: Yes
PLANS DATA
No. of sheets: 6
Level of Detail: Average
Plans Format: Print or Digital
Cost per set: $100
Plan No. 130
Particulars
LOA: 19′
LWL: 17′4″
Beam: 7′
Draft: 2′4″
Displacement: 2384 lbs
Sail area: 210 sq ft
