Inspired by an old Howard Chappelle design, Karl Stambaugh demonstrates that we need not mimic the short, fat, and inefficient stock outboard cruisers of the 1950s.

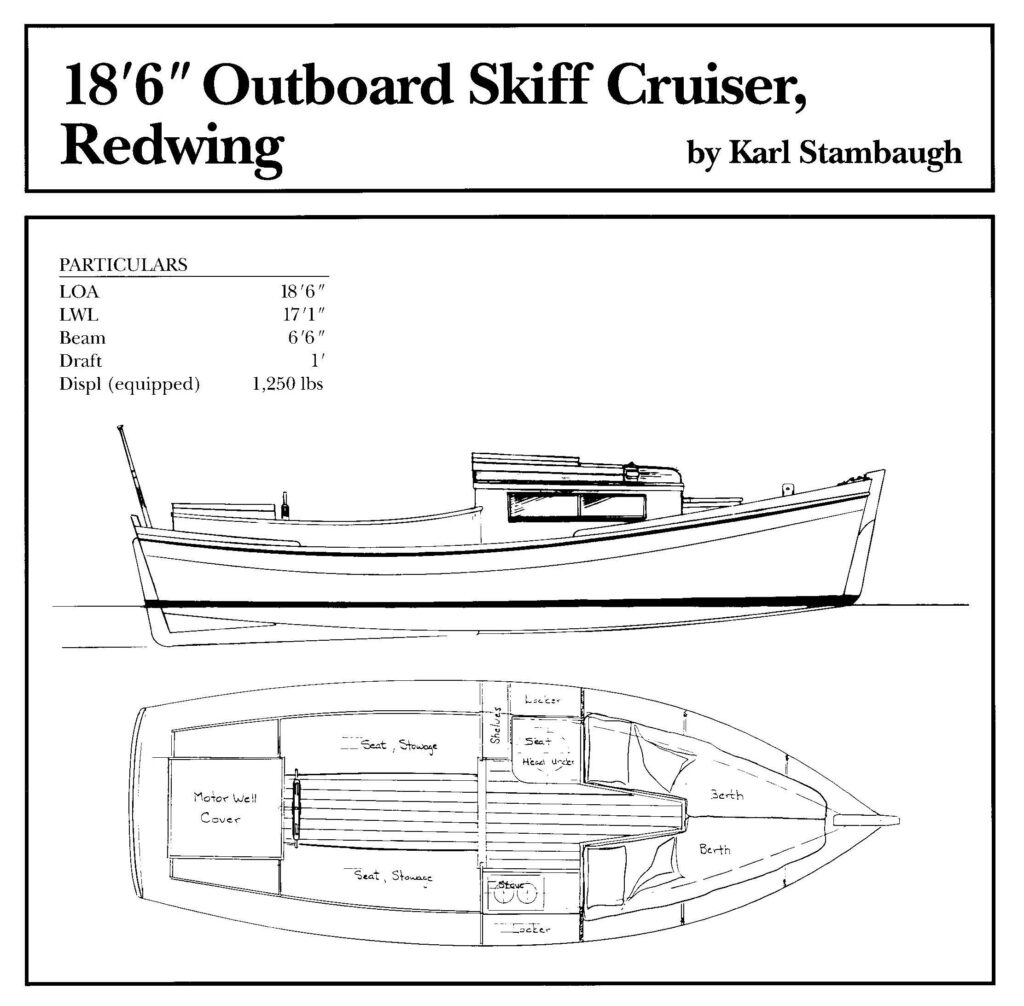

18′6″ Outboard Skiff Cruiser, Redwing
DESCRIPTION
Hull type: Flat-bottomed
Construction: Plywood planking over sawn frames
Headroom/cabin (between beams): About 3′6″
PERFORMANCE
Suitable for: Protected waters
Intended capacity: 1-4 day tripping, 2 cruising
Trailerable: Yes
Propulsion: 5–10-hp outboard
Speed (knots): Up to 6
BUILDING DATA
Skill needed: Intermediate
Lofting required: Yes
PLANS DATA
No. of sheets: 4
Level of Detail: Average
Plans Format: Print
Cost per set: $90
Plan No. 108
Related Publications:
WoodenBoat, No. 114
Boat Design Quarterly, Vol. 1
Particulars
LOA: 18’6″
LWL: 17’1″
Beam: 6’6″
Draft: 1′
Displacement: 1250 lbs (equiped)
